Threat Model#

This threat model defines the adversary CPEX assumes, the boundary it enforces, and what each deployment placement does and does not cover. See Vision for the underlying model.

The adversary#

CPEX assumes the LLM driving an agent is compromised, or close enough that the difference does not matter. Three things make it untrusted:

• Its inputs are attacker-reachable. Prompt injection can arrive through any content the model reads: user messages, tool results, fetched resources, other agents’ replies.
• Its outputs are attacker-shaped. An injected instruction becomes a tool call, an argument value, an email body. The model is a confused deputy: it acts with the agent’s authority on whoever’s behalf the text says.
• It cannot keep secrets or enforce rules. Anything in the context window can be exfiltrated through an allowed output channel, and any instruction in the prompt can be overridden by a later one.

The assets at stake sit behind the agent: backend data (records, code, mail), the credentials the agent holds, tools with side effects (payments, writes, messages), and the integrity of the audit trail itself.

The consequence is the reference-monitor rule: authorization, delegation, and information-flow decisions cannot live in the model, in the prompt, or in agent code the model steers. They live at a boundary the model’s output must cross, evaluated against state the model cannot see or forge.

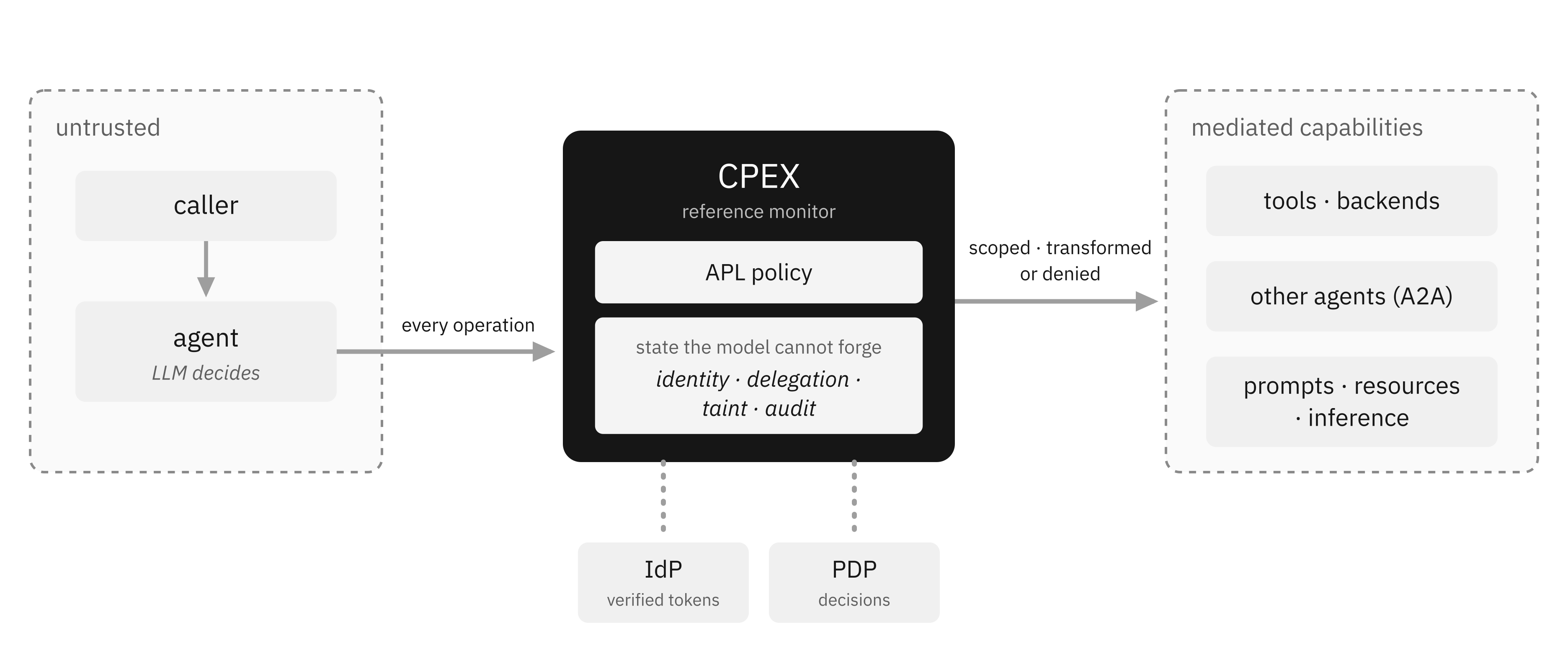

The trust boundary#

CPEX draws that boundary. Every operation the agent attempts crosses it; nothing the model emits reaches a capability directly.

Everything to the left of the monitor is assumed hostile, and nothing the policy reads comes from there: verified tokens come from the IdP (identity provider), decisions from the PDP, taint labels from the session store, and the delegation and audit state is CPEX’s own. The model can ask for anything; it can influence none of the state the answer depends on.

Threats and controls#

No single row is load-bearing alone. The defense-in-depth pattern composes them in one route.

Where the boundary sits, and what each placement covers#

CPEX is direction-agnostic: the same APL policy enforces at any placement (see Deployment). The placement decides which traffic is mediated, which is the threat-model question: an enforcement point only stops what crosses it.

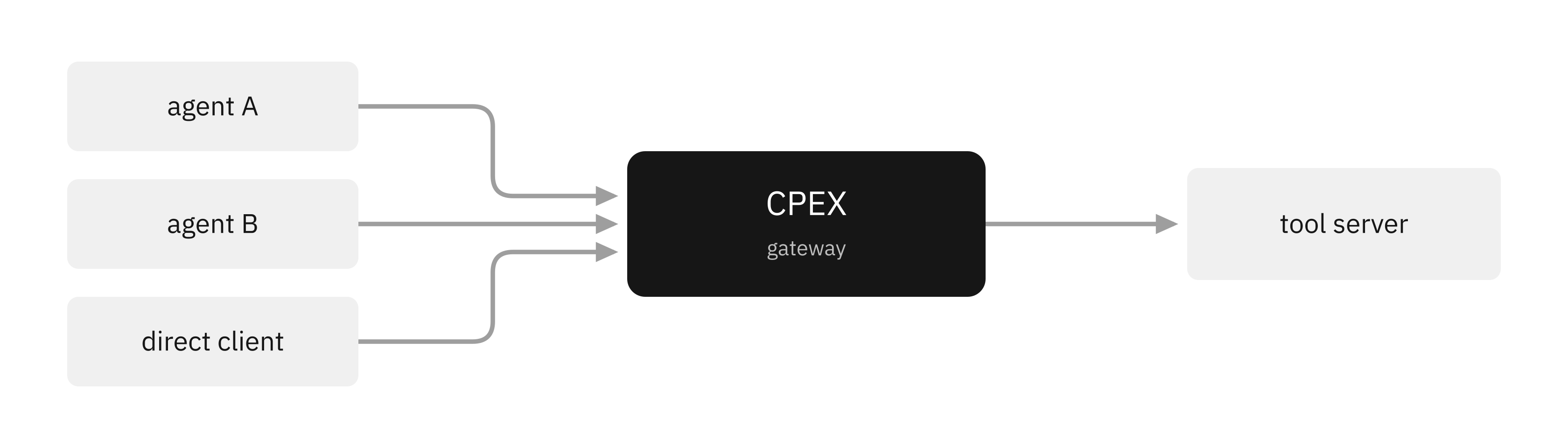

Proxy / gateway (inbound)#

CPEX fronts a tool server. Every request to that backend crosses the boundary, whichever agent or client sent it.

Covers

• Every caller of the protected backend, including agents you do not operate and callers that bypass the “official” agent.
• On-the-wire transformation: the backend never sees redacted values, and never sees the caller’s raw IdP credential when delegation mints a scoped token.
• A single audit chokepoint for the resource.

Does not cover

• Anything the agent does that never touches this backend: other tools, other APIs, side channels.
• Agent-internal context. The gateway sees requests, not the conversation, so per-turn or lineage-based policy has less to read.

This is the placement in the end-to-end Praxis demo.

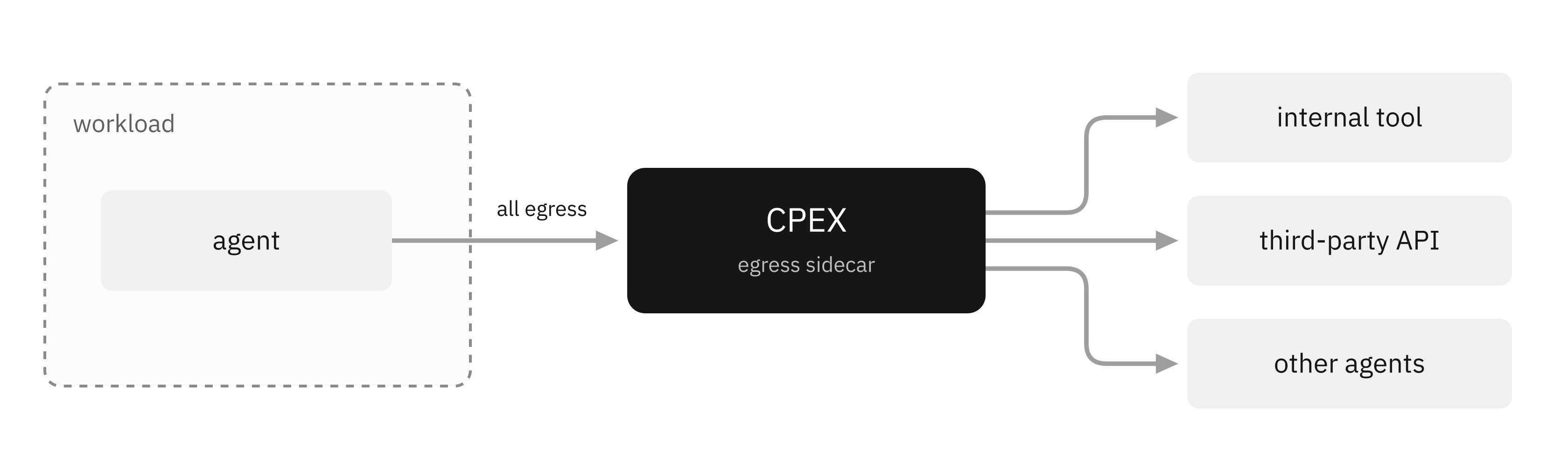

Endpoint / workload sidecar (outbound)#

CPEX sits beside one agent and mediates its egress. Everything that agent emits crosses the boundary, whatever it targets.

Covers

• The complete outbound surface of the workload, including third-party APIs you do not control and could never gateway.
• Workload identity: the caller_workload.* and this_workload.* attributes carry attested identity (SPIFFE / mTLS), so policy can bind decisions to which workload is calling, not just which user.
• Exfiltration control for a specific agent: taint follows the session across every backend the agent reaches.

Does not cover

• Other paths to the same backends. The sidecar protects the world from this agent, not the backend from other callers.
• Traffic that escapes the sidecar’s capture. Egress must be forced through it at the network level, or the guarantee is advisory.
• Inference traffic, unless you deliberately route it through the policy path (see Deployment).

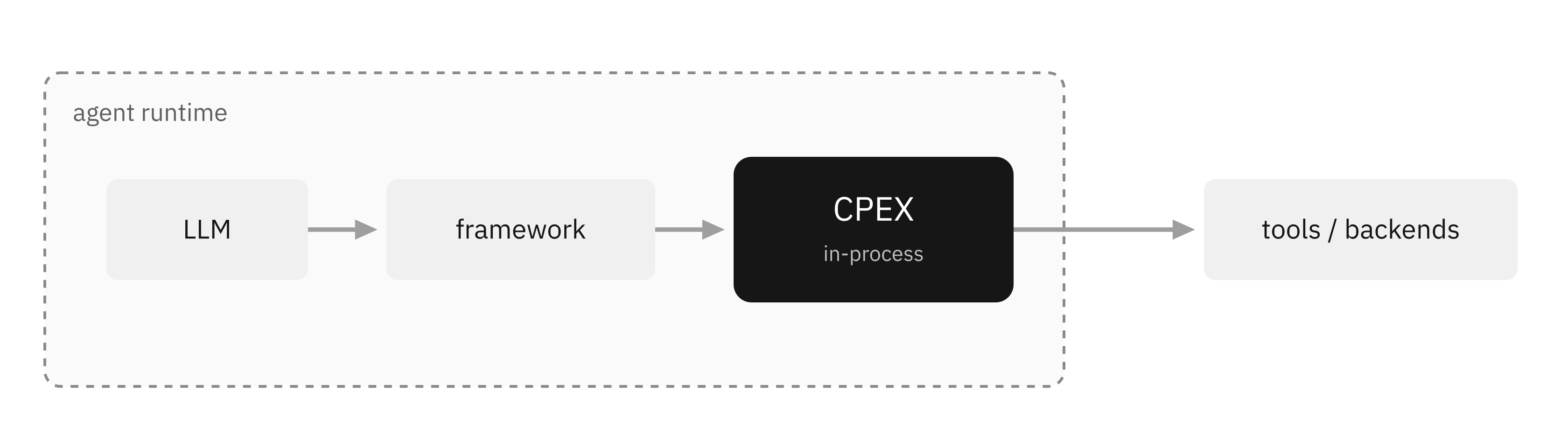

Agent / agentic framework (in-process)#

CPEX runs inside the agent runtime and mediates operations as the framework issues them.

Covers

• The richest policy context: agent.* (session, conversation, turn, lineage) and framework.* (node and graph ids) attributes let policy reason about where in the agent’s execution an operation originates.
• Enforcement before any network hop, including on operations that never leave the process.
• Human-in-the-loop and taint decisions at the reasoning step, closest to the intent.

Does not cover

• Process-level compromise. CPEX shares the agent’s process; code execution in the runtime can bypass an in-process monitor. This placement hardens the agent’s decisions, not its host.
• Traffic from anything other than this runtime.

Compose them#

The placements are not alternatives. The strongest posture pairs an in-framework monitor (rich context, soft and enforcement-tier policy) with a gateway or sidecar at an infrastructure boundary the agent process cannot rewrite (hard-tier policy: identity, information flow, audit). That is the policy spectrum from Vision: the same APL object at every point, so layering placements costs no policy duplication.

Builtins that reach outside the process#

Since 0.3.0 the Python and Go builds carry the same builtins as the Rust facade, including four that hold credentials or call out. Each widens what the host process is trusted with.

Vault secret provider#

The vault provider reads secrets: values from Vault KV v2 with Kubernetes or AppRole auth. The engine holds a Vault token and the resolved values in memory for the life of the process.

• The address must be https:// unless the document sets insecure_http: true. Keep it off outside local development.
• An AppRole secret_id comes from an environment variable or a file. A literal is refused unless the document also sets allow_insecure_literal: true.
• Kubernetes login rereads the projected service-account token on every login, so a rotated token is picked up.
• Refresh reports and their log lines name the secret, the provider and a failure class, never the value. Treat the process’s memory and core dumps as holding every declared secret.
• Anyone who can edit the policy document chooses which Vault paths the process reads, within what the Vault role allows. Scope the role to the paths the policy needs.

Secret refresh is the host’s responsibility#

The engine reads secrets once, at initialize(), and never re-reads on its own. A binding host that rotates credentials must call refresh (refresh_secrets, RefreshSecrets, cpex_refresh_secrets) on an interval and alarm when a provider’s last success grows old. A failed re-read keeps the last good value, so a Vault outage degrades silently to a stale credential. The refresh interval is the upper bound on how long a revoked credential stays in use. A host that never calls refresh never rotates.

CIBA approval channel#

elicitation/ciba trusts the approver identity in the token the OP returns, because it arrives over a client-authenticated TLS poll; it does not verify that token’s signature itself. Reach the CIBA and token endpoints over https:// with real client credentials. See Elicitation.

API-key directory#

identity/api-key resolves opaque keys against a file of SHA-256 digests or an HTTP directory.

• The file stores digests, not keys. Use high-entropy keys so a leaked file does not yield to offline guessing.
• A revoked key can still authenticate until the next successful file reload (refresh_secs) or until its HTTP cache entry expires (cache.ttl_secs). If a reload fails, old records stay in use up to max_staleness_secs, then lookups deny.
• An HTTP directory is an outbound call: it needs perform_http and goes through the host transport.
• The presented key is not kept in the raw credentials, so it is never forwarded downstream.

OPA decision point#

opa evaluates Rego in process (regorus); it makes no network call. Its inputs are the attribute bag plus structured args and llm.request, which come from the client. The sensitive headers Authorization, Cookie and X-API-Key are stripped before any PDP sees the request. PDP-generated errors name types, not values, but text a policy author writes (an OPA reason, an APL deny('...')) reaches the client verbatim: do not copy payload values into it.

Outbound HTTP and private destinations#

Every outbound builtin (JWKS fetch, token exchange, CIBA, API-key HTTP directory, Vault) uses one transport the host installs. The bundled transport refuses loopback, RFC 1918, link-local (including cloud metadata) and CGNAT addresses at the address it would dial, including hostnames that resolve only to such addresses. This blocks the common SSRF path where a policy author, or a token’s issuer field, points a plugin at an internal service.

Each surface has a host-side opt-in that lifts the block (with_allow_private_destinations(), allow_private_destinations=True, WithPrivateDestinations(), CPEX_APL_ALLOW_PRIVATE_DESTINATIONS). It is engine-wide: once set, every outbound builtin may reach every private address, including 169.254.169.254. No policy document can set it. The tutorial and demos set it to reach a local IdP; production hosts should not. To reach an in-cluster IdP or Vault, install a host transport with explicit egress rules.

A refused call fails closed: delegation.egress_denied, elicitation.egress_denied, or auth.jwks_unavailable for JWT, which an operator may read as an IdP outage.

The Python plugin host#

The isolated_venv host runs each Python plugin in its own subprocess and virtualenv, so a plugin crash or a dependency conflict stays out of the engine’s process. It does not sandbox the plugin: the subprocess runs with the host’s user and network access.

For a Python worker that does not claim CMF support, the host translates each cmf.* hook into the legacy hook and payload the worker knows. Where it cannot represent a request faithfully (an LLM hook, a message with zero or several matching parts, a binary resource, a modified payload the message cannot hold), it fails closed with legacy_shim_unsupported rather than allowing or skipping the plugin. On a post hook it also refuses a message with any other part that carries content, since a filter that cannot see that part would pass it through unredacted. On a pre hook such parts pass through unchanged: the plugin authorizes the call, request or URI it sees.

Raw tokens reach a Python plugin only through a capability-gated credential object. On identity.resolve the payload a plugin sees omits the credential-bearing request headers (the source header, authorization, proxy-authorization, cookies, x-api-key, and any header holding the token) unless the plugin declares read_inbound_credentials. A delegator gets the caller’s bearer token under the same capability. Once a token is in the worker, the gate no longer constrains it: the plugin’s code and dependencies can read it.

Identity input from binding hosts#

The Python, Go and C bindings take an identity.resolve input from the host. That input may set only source, source_header, headers, client_host and client_port. A host bug or an attacker-shaped request that pre-filled subject, client, caller_workload, delegation, raw_credentials, resolved_at or raw_claims could forge the identity the resolvers return, so the bindings refuse it before any plugin runs. The result does not echo the request headers, so the inbound token does not travel back into host logs or responses.

A hook name removed in 0.3 is refused at invoke time as well as at load. It would reach no handler and come back allowed with no policy evaluated.

Extensions are a different matter: the engine trusts the security.subject a host passes on a later call. Pass only a subject that came from identity.resolve, or use Go InvokeResolved to keep resolution inside the engine.

Known limitations#

Elicitation approval binding#

PPE 0.5.0 binds CIBA approvals to the authenticated requester, route and tool, and redeems them atomically once within the plugin instance. This fixes the cross-subject approval reuse present in CPEX 0.2.3. Requests without an authenticated subject id fail before the backchannel call.

The correlation store remains in process. A restart loses pending approvals, and replicas need sticky routing for a dispatch/resume pair. Keep approval timeouts short and return ids only to the requesting client.

Audit sinks cannot run beside routes#

Under dispatch: policy, PPE 0.5.0 cannot attach an audit sink to a config that has routes: a sink no step names fails the load, and run(<sink>) denies. The “unaccountable actions” control above therefore needs a hook plugin that a run(...) step names, or a host that logs the PipelineResult of every call. A host that does neither has no decision record. See Auditing.

Host-supplied client identity is visible only through read_client#

A host may pass security.client in the extensions it sends, but route rules see client.* only when a plugin the route references declares read_client. Otherwise the attributes read as absent. Rules written as require(...) then deny, which is safe; a rule that allows on the absence of a client attribute would not be. Resolve the client with an identity plugin on the route, and write client checks as require(...).

HTTP routes are Rust-only#

http: routes and the http.request / http.response hooks work from a Rust host only. The Python and Go bindings cannot build the HTTP payload, so a binding host cannot enforce generic HTTP policy. Put that enforcement in a Rust host or gateway.

Out of scope#

CPEX is a reference monitor, not a model alignment technique. Explicitly outside this threat model:

• Model-internal behavior. CPEX constrains what the model’s decisions can do, not what the model decides. A jailbroken model behind CPEX still only reaches what policy allows.
• Covert channels inside allowed traffic. If policy permits an output channel, a determined model can encode data into it. Taint narrows this (deny the channel once secrets are touched); it does not eliminate encoding within permitted flows.
• Compromise of the CPEX host. The monitor’s guarantees hold only as long as the process and state stores it depends on are intact. Run hard-tier enforcement on infrastructure with a smaller attack surface than the agent it guards.
• Backends themselves. CPEX decides what reaches a tool and what comes back; it does not vouch for what the tool does internally.

Believe you have found a policy-enforcement bypass? That is our critical severity class. Report it privately via the process in SECURITY.md.
