Identity & Delegation#

CPEX does two identity jobs on every request: it resolves who is calling in (inbound identity) and mints the credential it calls out with (outbound delegation). Find the shape you need (“a user acting through an agent”, “an agent acting as itself”, “a service acting as itself”), copy the plugin config and the route layout, and check the support matrix for where it has been tested.

The same config runs wherever you place it: in front of the tools, inside the tool server, or agent-side (see Where to place CPEX). Throughout this page “the enforcement point” means “wherever this CPEX instance runs.”

For the conceptual model first, read Use Cases and Deployment; for the full config schema, see Configuration.

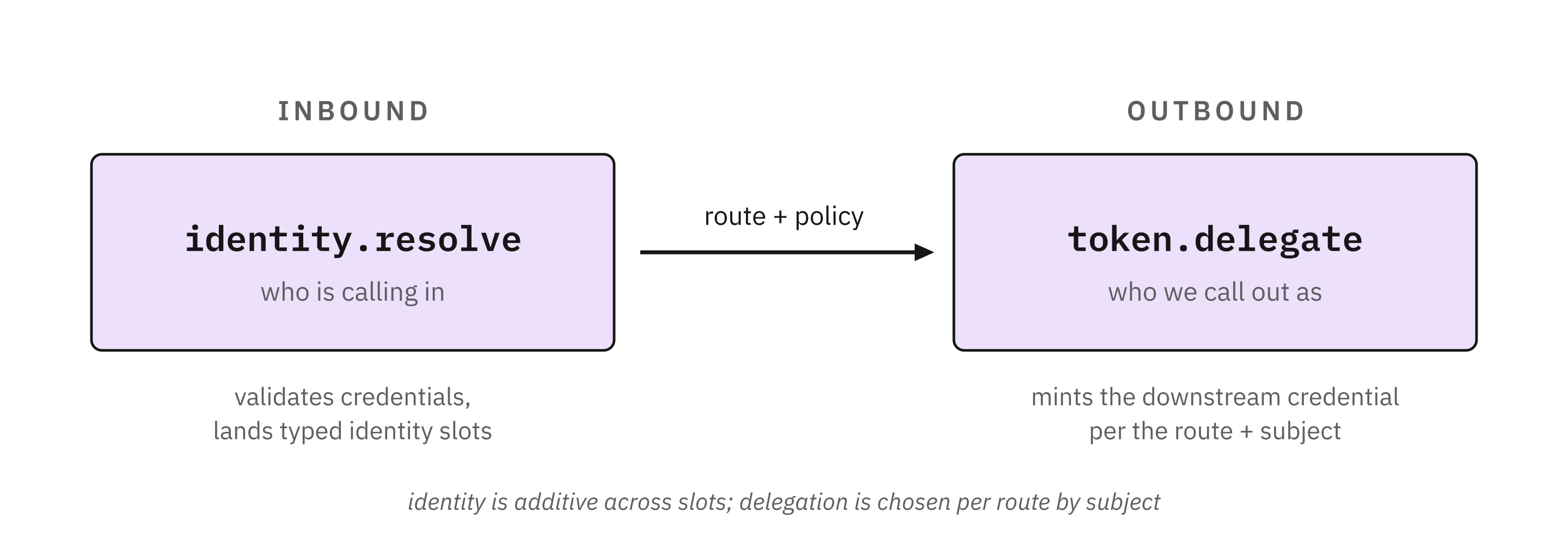

The model in one picture#

Every request crosses two identity boundaries:

• Inbound. identity.resolve plugins each read one credential (from a header) and land a typed identity in a slot. They are additive: one request can carry a user token and a workload SVID, both validated.
• Outbound. A delegate(...) step in the route runs a token.delegate plugin that mints the credential attached to the upstream call. The step’s subject: chooses what the minted token speaks for.

Building blocks#

Identity slots (inbound)#

Delegation subjects (outbound)#

The subject: on a delegate(...) step decides the OAuth mechanism the delegator uses:

this_workload names this CPEX instance acting as its own identity, whatever you’ve deployed it as. It does not claim CPEX is a gateway. (gateway is accepted as a deprecated alias.)

“I want to…” → mechanism#

Scoping: how broadly to apply it#

CPEX resolves the pipeline for each request across one broad → narrow stack, and both identity and policy (including delegation) ride it. Narrower layers add to (or override) broader ones. Pick the broadest layer that’s still correct.

A group is a named, reusable bundle of policy (authentication steps + authorization steps + plugins) that routes opt into. The layers, broad to narrow:

So a delegate(...) is not route-only. To pick its breadth, put it (or a token.delegate plugin) at the matching layer:

• every tool → a delegate() in a tool: "*" route, or the delegator plugin in defaults.tool,
• a class of tools → a group,
• one tool → a specific route (which overrides the * default; more specific wins).

The stack in one config#

global:
  authentication: [jwt-user]            # every request gets user identity

groups:
  hr-tools:
    authentication: [jwt-manager]       # + manager identity for this group
    authorization:
      pre_invocation:
        - "require(role.hr)"            # + policy for this group

routes:
  - tool: get_compensation
    groups: hr-tools                    # join the group: jwt-user + jwt-manager, require(role.hr)
    authorization:
      pre_invocation:
        - "delegate(workday-oauth, target: workday-api, audience: workday-api, permissions: [read_compensation])"

groups: hr-tools is the first-class way to join a group, and it is sugar over tags: meta: { tags: [hr-tools] } is exactly equivalent, and host-injected runtime tags join groups the same way.

The override. A route that must stand alone drops the inherited layers:

routes:
  - tool: get_directory
    authentication:
      replace_inherited: true           # ignore global + group layers…
      steps: [jwt-workload]             # …authenticate by the SVID alone

That is what Recipe 2 uses. (Full group / defaults syntax: Configuration.)

Rule of thumb#

Recipes#

Each recipe is a drop-in: the plugins it needs, the route layout, and where it has been run. All config is unified-config YAML.

Canonical keys. These recipes write policy under authorization: (with pre_invocation: / post_invocation: inside), the orchestrator-agnostic spelling. The older apl: wrapper is still accepted, and pre_invocation: may also be written flat on the route; all three compile identically.

Recipe 1: User acting through an agent (on-behalf-of)#

When: a human is signed in; the agent calls a downstream API as that user. CPEX exchanges the user’s IdP token for a downstream-audience token.

plugins:
  - name: jwt-user
    kind: identity/jwt
    hooks: [identity.resolve]
    config:
      role: user
      header: X-User-Token
      trusted_issuers:
        - issuer: "https://idp.example.com/realms/corp"
          audiences: ["cpex"]        # the audience the user token is minted for
          algorithms: ["RS256"]
          decoding_key: { kind: jwks_url, url: "https://idp.example.com/realms/corp/protocol/openid-connect/certs" }

  - name: workday-oauth
    kind: delegator/oauth
    hooks: [token.delegate]
    capabilities: [read_inbound_credentials, write_delegated_tokens]
    config:
      token_endpoint: "https://idp.example.com/realms/corp/protocol/openid-connect/token"
      client_id: "cpex"              # this CPEX instance's own OAuth client
      client_secret_source: { kind: env_var, name: CPEX_CLIENT_SECRET }

global:
  authentication: [jwt-user]

routes:
  - tool: get_compensation
    authorization:
      pre_invocation:
        - "require(role.hr)"
        - "delegate(workday-oauth, target: workday-api, audience: workday-api, permissions: [read_compensation])"

The minted workday-api token is attached to the upstream call. Tested: Keycloak 26.x (Standard Token Exchange v2).

Recipe 2: Agent acting as itself, by its SPIFFE SVID#

When: the agent is the principal (no human), and you don’t trust the agent to hold downstream authority. The agent presents its SVID; CPEX brokers a scoped downstream token. The agent holds no standing entitlement to the target.

The SVID is a JWT, but not an IdP token. A JWT-SVID is an ES256 JWT signed by SPIRE (validated against SPIRE’s JWKS, not your IdP’s): a SPIFFE identity credential, not an OAuth access token. It can’t be forwarded to the downstream or used as a bearer/subject token as-is; CPEX has to turn it into an IdP-issued token first (leg 1 below). Contrast Recipe 5, whose input is a token already minted from an SVID.

Add a workload resolver, scoped to the route so only it runs there:

plugins:
  - name: jwt-workload
    kind: identity/jwt
    hooks: [identity.resolve]
    on_error: fail
    config:
      role: caller_workload
      header: X-Workload-Token
      trusted_issuers:
        - issuer: "https://spire-oidc.internal:8443"   # SPIRE OIDC discovery
          audiences: ["https://idp.example.com/realms/corp"]   # SVID aud = the IdP
          algorithms: ["ES256"]                                # SVIDs are EC-signed
          decoding_key: { kind: jwks_url, url: "https://spire-oidc.internal:8443/keys" }

routes:
  - tool: get_directory
    # Authenticate this route by the SVID alone: drop the global user/client
    # resolvers. `jwt-workload` is NOT in global.authentication.
    authentication:
      replace_inherited: true
      steps: [jwt-workload]
    authorization:
      pre_invocation:
        - "delegate(workday-oauth, target: workday-api, audience: workday-api, permissions: [read_compensation], subject: caller_workload)"
        - "!delegation.granted: deny"

For subject: caller_workload, the OAuth delegator runs two legs: leg 1 presents the SVID as an RFC 7523 client_assertion (type …:jwt-spiffe) to authenticate the agent as its IdP client; leg 2 exchanges that for the scoped downstream token. The IdP side needs a SPIFFE identity provider (validates the SVID against SPIRE’s trust bundle) and a client bound to that SVID via SPIFFE/federated client authentication; consult your IdP’s SPIFFE client-auth docs. Tested: Keycloak 26.6 (feature spiffe:v1).

Why route-scope it: keeping the workload authority off the agent’s own identity, and requiring the enforcement point’s credential for the scope-up, is what makes CPEX the trust boundary. A compromised agent can prove who it is but cannot mint the downstream token itself.

Recipe 3: A service acting as itself#

When: CPEX calls a downstream as itself, with no inbound credential to exchange (e.g. a scheduled job, or CPEX’s own housekeeping).

routes:
  - tool: sync_directory
    authorization:
      pre_invocation:
        - "delegate(svc-oauth, target: workday-api, audience: workday-api, subject: this_workload)"

subject: this_workload switches the delegator to client_credentials: no subject_token, CPEX’s own client_id/secret is the identity. Tested: Keycloak (client_credentials).

Recipe 4: Forward a token the caller already has (passthrough)#

When: the agent authenticated to the IdP itself and hands CPEX a ready token. CPEX validates it inbound and lets the route forward it, with no delegate step. This is the “agent-brokered” case; it needs no delegation code, only that the inbound resolver validates the token and the route allows the call.

Recipe 5: Scope a token the agent already holds (1-leg)#

When: the agent authenticated to the IdP itself with its SVID and got back a normal JWT, and you still want CPEX to narrow that token per-tool (least privilege at the boundary) without ever handling the SVID.

The token is not the SVID. The agent presented its SVID as a client_assertion upstream and received an ordinary IdP access token. That token arrives here like a user token: same header, same JWKS validation, RS256 (an IdP-signed JWT), not the ES256 SVID. CPEX never sees the SVID; it sees a normal token.

plugins:
  - name: jwt-agent
    kind: identity/jwt
    hooks: [identity.resolve]
    config:
      role: client                 # the agent as an OAuth client
      header: Authorization        # a normal bearer token, NOT X-Workload-Token
      trusted_issuers:
        - issuer: "https://idp.example.com/realms/corp"
          audiences: ["cpex"]
          algorithms: ["RS256"]    # an IdP-issued JWT, not the ES256 SVID
          decoding_key: { kind: jwks_url, url: "https://idp.example.com/realms/corp/protocol/openid-connect/certs" }
routes:
  - tool: get_directory
    authorization:
      pre_invocation:
        - "delegate(workday-oauth, target: workday-api, audience: workday-api, permissions: [read_compensation], subject: client)"

This is a plain RFC 8693 exchange, the same engine as Recipe 1, scoping the agent’s token instead of a user’s. One leg (the scope): the agent did the authenticate leg upstream, so CPEX doesn’t.

Don’t confuse this with Recipe 2. The trigger is what the agent presents: an SVID, or a token minted from one:

Using subject: caller_workload on an already-minted token misroutes it down the two-leg client_assertion path.

Recipe 6: User acting through an agent, with the agent named (dual-principal)#

When: a human is signed in and you want the record to name the agent that carried out the call. The minted token speaks for the user (sub), and CPEX additionally names the calling agent as the RFC 8693 acting party (act), so a token service that honors delegation records both who authorized the action and who performed it.

It composes two inbound resolvers: jwt-user (Recipe 1) for the human on X-User-Token, and jwt-workload (Recipe 2) for the agent’s SVID on X-Workload-Token. Both must resolve; both credentials arrive on every call.

global:
  # define jwt-user (Recipe 1) and jwt-workload (Recipe 2); run both
  authentication: [jwt-user, jwt-workload]

routes:
  - tool: get_compensation
    authorization:
      pre_invocation:
        - "require(role.hr)"
        - "delegate(workday-oauth, target: workday-api, audience: workday-api,
                    permissions: [read_compensation],
                    subject: user, actor: caller_workload)"

subject: user makes the user’s token the RFC 8693 subject_token (exactly as Recipe 1); actor: caller_workload additionally attaches the agent’s SVID as the actor_token, requesting that the minted token carry act alongside sub. This is one exchange call with two principals in the request, not a second leg. actor accepts only inbound credentials (user, client, caller_workload): the acting party is by definition one that presented itself to CPEX.

Subject vs. actor. The subject is who the token speaks for (whose authority); the actor is who is doing it (attribution). Least-privilege scoping still follows the subject. The act claim records the agent, it doesn’t grant it anything.

Which actor, client or caller_workload? Match it to how the agent authenticated. An agent that presented a SPIFFE SVID is a caller_workload (above); one that authenticated as a registered OAuth client (an Authorization bearer token, resolved with role: client) is actor: client:

- "delegate(workday-oauth, target: workday-api, audience: workday-api,
            permissions: [read_compensation], subject: user, actor: client)"

Valid combinations. actor: pairs with subject: user or subject: client, the on-behalf-of shape. It is not supported with subject: caller_workload (the workload is already the subject) or subject: this_workload (a client_credentials grant carries no actor_token); CPEX rejects those at config time rather than silently dropping the actor.

CPEX side: implemented and e2e-tested against a mock IdP. The delegator puts the actor on the wire exactly as RFC 8693 delegation prescribes (actor_token + actor_token_type), and omits it when no actor is configured.

Interop: act is the token service’s job (impersonation vs. delegation). RFC 8693 (§1.1) exchanges come in two flavors. Impersonation returns a token that speaks purely for the subject, indistinguishable from one the subject fetched directly, with no act claim. Delegation additionally records the actor in a nested act. The actor_token parameter is what asks for delegation; only a token service that implements the delegation path emits act. CPEX always sends the delegation request, but the claim only appears if the service honors it.

Keycloak does not. Keycloak’s Standard Token Exchange (v2, tested here on 26.6) implements impersonation only: it silently ignores actor_token and returns a subject-only token with no act. The tell (probed 2026-07-28): passing even a raw, untrusted-issuer SVID as the exchange’s actor_token produces no error. Keycloak never parses the parameter, so no mapper or config can surface it. To see act end-to-end you need a delegation-capable token service; against Keycloak, capture the acting agent at the CPEX boundary (audit / downstream header) instead. CPEX resolves both principals either way.

Where to place CPEX#

See Deployment → Placement guidance. The identity-specific read:

You can run CPEX at more than one point at once (agent hygiene + a chokepoint + resource defense-in-depth): same policy, different boundaries.

IdP support: tested vs. should-work#

CPEX’s identity/delegation plugins are configured against OAuth/OIDC standards, not any one vendor. Per layer:

If your IdP doesn’t yet speak SPIFFE, CPEX can still validate the SVID itself (it already fetches SPIRE’s JWKS in identity.resolve), establish caller_workload, and then mint the downstream token using its own credentials (subject: this_workload). Note the trade-off: a client_credentials grant carries no caller identity, so the minted token speaks for CPEX, not the agent. Capture the caller at the CPEX boundary (audit) if the backend needs it. That “CPEX-validates, CPEX-mints-as-itself” mode works with any OIDC IdP today; only the recipe-2 native flow needs the IdP to understand SVIDs.

Testing note: “Tested” means we have run it end-to-end against that IdP. “Should work” means it relies only on standards that IdP documents supporting. Treat it as a starting point, not a guarantee, and tell us what you find.

What to add next#
