Human-in-the-Loop Elicitation#

Some operations should not proceed on the caller’s say-so alone. A large payroll change wants a manager’s approval; a destructive action wants the user to confirm; a sensitive read wants a fresh second factor. Elicitation lets a policy pause an operation to ask a human and resume once they respond — without blocking the request path, and with the decision bound to the actual request rather than to an LLM’s paraphrase of it.

The requirement#

The scenario’s approve_raise may run only after the requester’s manager approves, and the approval must cover the specific amount being requested. The manager is not the caller, may take hours to respond, and their answer must be genuine — a signed decision from the right person, not a value the agent asserts. CPEX must dispatch the ask, hold the operation open across the agent’s retries, and verify the response before letting the tool run.

Elicitation as an effect#

Elicitation is an effect in the authorization.pre_invocation phase. A sugar verb names an elicitation handler plugin and who to ask:

plugins:
  - name: manager-approver
    kind: elicitation/ciba
    hooks: [elicit]

routes:
  - tool: approve_raise
    authorization:
      pre_invocation:
        - "require(authenticated)"
        - when: "args.amount > 10000"
          do:
            - "require_approval(manager-approver, from: claim.manager, channel: \"ciba\", scope: \"args.amount <= 25000\", purpose: \"Approve raise\")"

• from is who to ask — an attribute reference resolved against the request bag (here claim.manager, the requester’s manager, who differs from the subject). An attribute from that doesn’t resolve fails closed rather than dispatching to a bogus identity.
• scope is the args binding — an APL boolean expression the runtime checks against the live request when the response comes back.
• purpose is the audited, human-readable description of what is being asked.

The other verbs (confirm, require_step_up, require_attestation, request_info, require_review) parse to the same effect with a different kind; each selects the validation contract the runtime applies to the response.

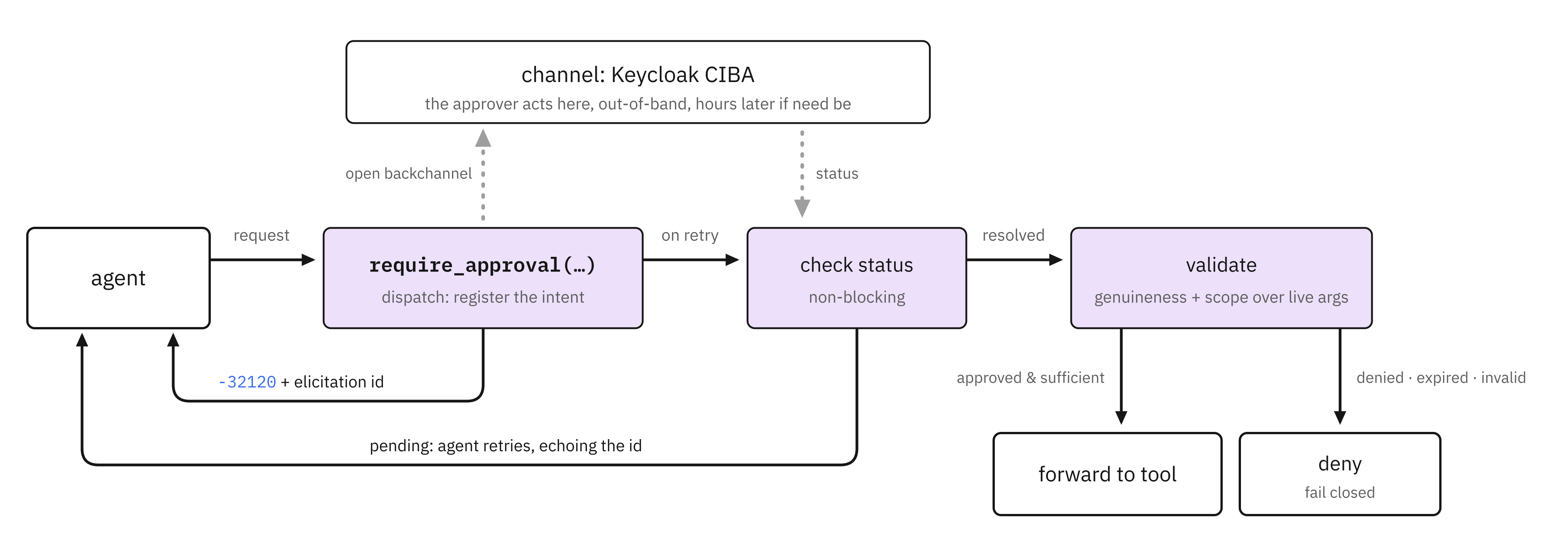

The model: suspend and resume#

An elicitation has three short, synchronous touch-points. The hours-long human gap lives in the channel (e.g. Keycloak CIBA), never in a blocking call:

1. Dispatch — first arrival: register the intent, open the channel backchannel, return a correlation id.
2. Check — on each agent retry: read status (pending / resolved / expired) without blocking.
3. Validate — once resolved: verify the response is genuine, then the runtime layers the scope-over-args sufficiency check before honoring the approval.

While pending, the phase suspends rather than denies. The decision stays Allow, but a pending marker rides alongside it, and the host maps that to JSON-RPC -32120 (“not complete — retry echoing this id”). The forward rule is one clause: forward only when the decision is Allow and nothing is pending. Expiry, channel error, a genuine denial, or a failed validation all fail closed (default on_error: deny).

The CIBA channel plugin#

The bundled elicitation/ciba plugin drives the ask through OpenID Connect CIBA (Client-Initiated Backchannel Authentication) against Keycloak or any CIBA-capable OP:

plugins:
  - name: manager-approver
    kind: elicitation/ciba
    hooks: [elicit]
    config:
      backchannel_endpoint: "https://idp.example.com/realms/corp/protocol/openid-connect/ext/ciba/auth"
      token_endpoint:       "https://idp.example.com/realms/corp/protocol/openid-connect/token"
      client_id: "cpex-gateway"
      client_secret_source:
        kind: file
        path: /etc/cpex-secrets/client-secret
      approver_claim: preferred_username

from becomes the CIBA login_hint, purpose seeds the binding_message, and timeout maps to requested_expiry. Dispatch returns an auth_req_id that doubles as the elicitation id the agent echoes on retry.

Elicitation attributes#

Dispatch and resolution write elicitation.* attributes that later rules in the same phase — and the audit log — can read:

A note on genuineness and args binding#

Two independent checks stand between an approval and the tool call, and it is worth understanding where each is enforced:

• Genuineness is the channel plugin’s job. For CIBA, the approver identity is extracted from the token the OP returns and cross-checked against the login_hint. The plugin trusts the token because it comes straight from the OP over a client-authenticated TLS poll — it does not independently verify the JWT signature. That trust therefore rests on the token endpoint being reached over correctly configured TLS with client authentication; deploy accordingly (always https://, real client credentials) and do not point a CIBA handler at a plaintext or unauthenticated endpoint outside local development.
• Sufficiency is the runtime’s job. Keycloak has no RFC 9396 rich authorization request, so the binding between “what was approved” and “what is being executed” lives in APL: the scope: expression is evaluated against the live request args at validation. A human can approve, but if the args drift outside scope (e.g. the amount was raised after approval), the operation fails closed regardless.

The purpose is recorded verbatim as the source of truth for what was approved — it is never derived from model output.

How it connects to the pipeline#

require_approval(...) and its sibling verbs dispatch to a plugin implementing the elicit hook, resolved by name off the route’s dispatch plan exactly like delegate(...). Because elicitation is an explicit, sequenced effect — gated behind authentication, checked on every retry, and validated before the forward — a pending or unapproved operation never reaches the tool.
